Double Pane or Triple Pane Windows?

Double Pane or Triple Pane Windows?
Rate this article
7 votes — 4.7
Updated:
4 days ago
Views:
8951
reviewer
Reviewed by Bryan Baeumler

When it comes to insulating your home and reducing energy costs, the choice between double-pane and triple-pane windows can have a significant impact. Both options offer improved energy efficiency compared to traditional single-pane windows, but understanding their differences is crucial for making an informed decision that suits your needs and budget.

Double-pane windows, also known as double-glazed windows, have been a popular choice for decades, offering enhanced insulation properties compared to single-pane windows. However, with advancements in technology and a growing emphasis on energy conservation, triple-pane windows have emerged as a more efficient alternative to double-pane glass throughout, promising even greater energy savings and improved insulation.

In this comprehensive guide, we'll delve into the key differences between double-pane and triple-pane windows, exploring their respective advantages, drawbacks, and potential cost implications, particularly:

What are Double Pane Windows?

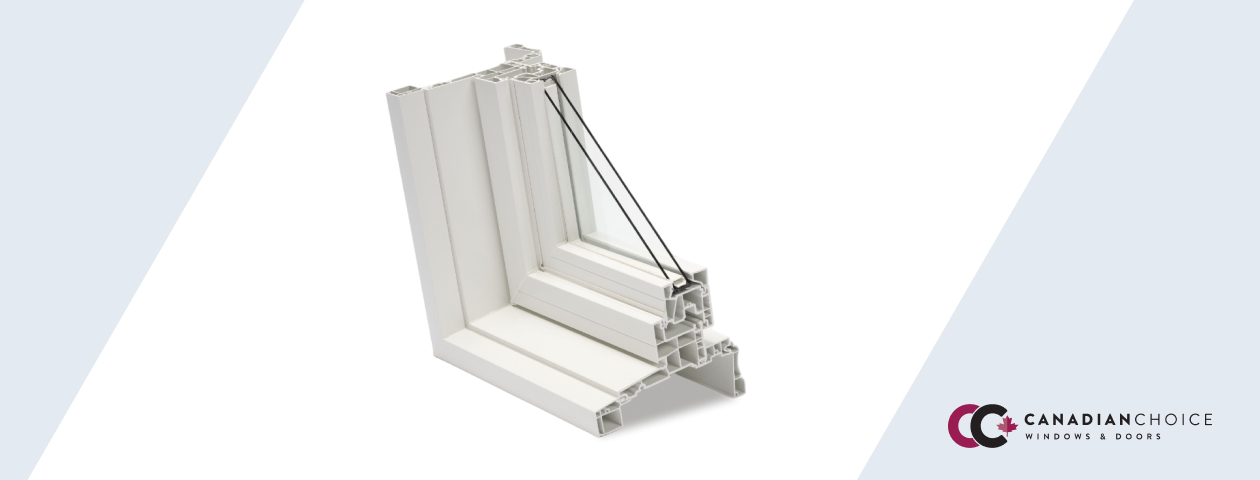

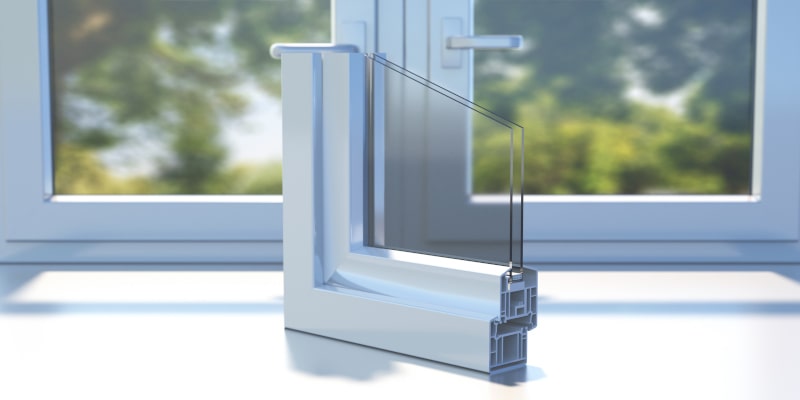

double pane window

Double pane windows consist of two panes of glass separated by a sealed air space, typically filled with an inert gas such as argon or krypton. This design of window glass creates an insulating barrier that reduces heat transfer, improving energy efficiency by minimizing heat loss during the winter and heat gain during the summer.

Key features of double pane windows:

  1. Two panes of glass separated by an insulating air space
  2. Improved sound insulation compared to single-pane windows
  3. Available in various frame materials (vinyl, wood, aluminum, etc.)

Pros:

  • Better Insulation: Double-pane windows provide improved insulation compared to single-pane windows, reducing heat transfer and lowering energy costs.
  • Noise Reduction: The extra pane of glass and insulating air space help reduce exterior noise, providing a quieter indoor environment.
  • Condensation Resistance: Double-pane windows are less prone to condensation buildup compared to single-pane windows.
  • Lower Initial Cost: Double-pane windows are more affordable than triple-pane windows, making them a cost-effective option for homeowners on a budget.
  • Versatility: Double pane windows are available in various frame materials, styles, and designs, allowing for customization to suit different home aesthetics.

Cons:

  • Lower Energy Efficiency: While better than single-pane windows, double-pane windows are not as energy-efficient as triple-pane windows, potentially resulting in higher energy costs over time.
  • Limited Noise Reduction: Compared to triple-pane windows, double-pane windows offer less noise insulation, which may be a concern in extremely noisy environments.
  • Potential Seal Failure: Over time, the seal between the glass panes can fail, leading to condensation buildup or foggy windows, requiring replacement.

What are triple-pane windows?

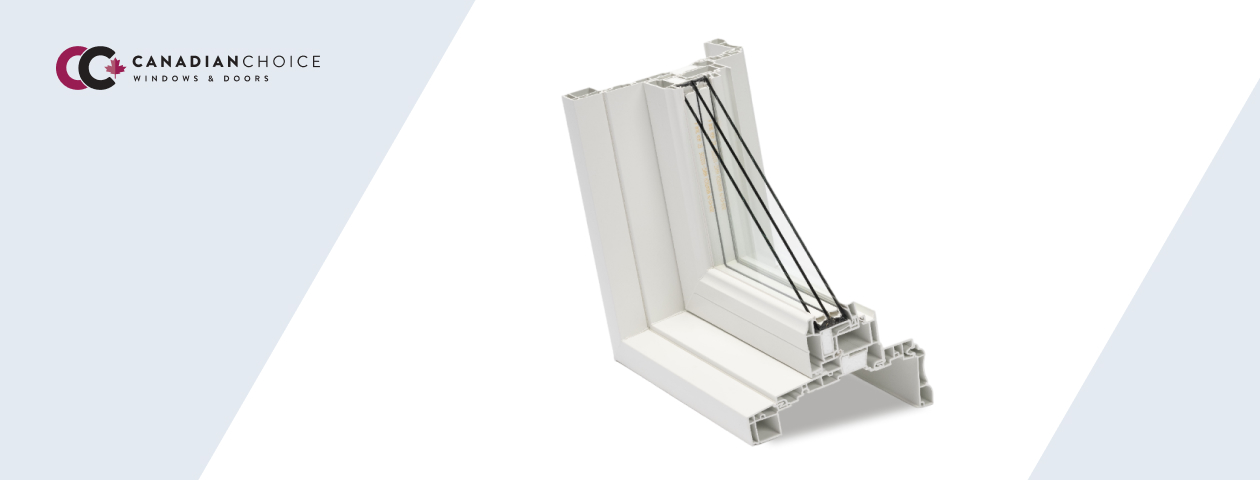

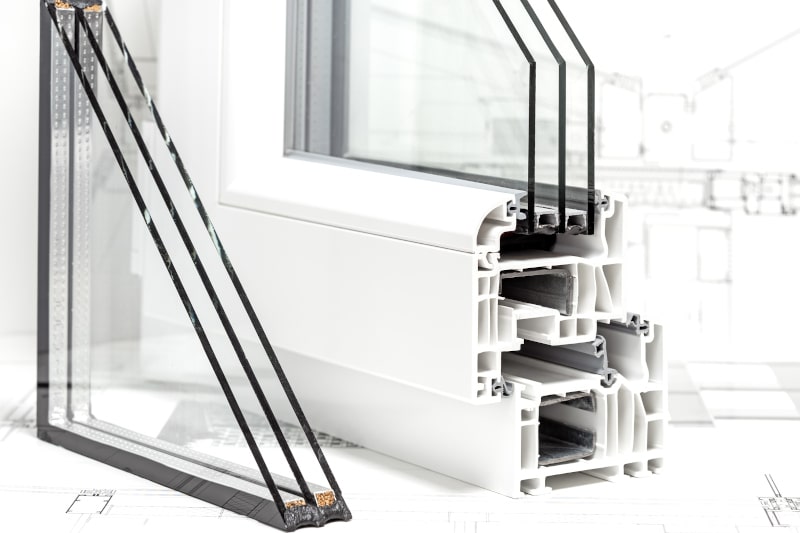

triple-pane window

Triple-pane glass, also known as triple-glazed windows, take insulation a step further by incorporating three panes of glass instead of two. These windows have two insulating air spaces filled with inert gas, providing superior insulation capabilities compared to double-pane windows.

Key features of triple pane windows:

  1. Three panes of glass separated by two insulating air spaces
  2. Improved sound insulation compared to double-pane windows
  3. Available in various frame materials (vinyl, wood, aluminum, etc.)

Pros:

  • Superior Energy Efficiency: With an additional insulating air space and pane of glass, triple pane windows offer exceptional insulation, significantly reducing heat transfer and lowering energy costs.
  • Excellent Noise Reduction: The extra pane of glass and two insulating air spaces provide superior sound insulation, making triple pane windows ideal for homes in noisy areas.
  • Increased Comfort: The improved insulation properties of triple pane windows create a more comfortable indoor environment by minimizing temperature fluctuations and drafts.
  • Potential Energy Savings: While more expensive upfront, the long-term energy savings from triple pane windows can offset the higher initial cost over time.
  • Enhanced Condensation Resistance: The additional panes of glass and insulating air spaces make triple-pane windows highly resistant to condensation buildup.

Cons:

  • Higher Initial Cost: Triple-pane windows are more expensive than double-pane windows due to the additional materials and manufacturing processes involved.
  • Heavier Weight: The extra pane of glass and increased thickness make triple-pane windows heavier, potentially requiring stronger window frames and support structures.
  • Reduced Natural Light: The additional panes of glass can slightly reduce the amount of natural light entering the home compared to double-pane windows.
  • Potential Seal Failure: Like double-pane windows, triple-pane windows can experience seal failures over time, leading to condensation or fogging between the panes.

Comparison: Double Pane vs Triple Pane Windows

To help you make an informed decision, we've created a comprehensive comparison table highlighting the key differences between double-pane and triple-pane windows:

Feature Double Pane Windows Triple Pane Windows
Number of Glass Panes 2 3
Insulating Air Spaces 1 2
Inert Gas Fill Yes (argon or krypton) Yes (argon or krypton)
Low-E Coatings Available Available
Noise Reduction Good Excellent
Energy Efficiency Good Superior
R-Value (Insulation) R-3 to R-5 R-6 to R-9
Initial Cost Lower Higher
Potential Energy Savings Moderate Significant

Energy Efficiency

One of the most significant advantages of triple-pane windows is their superior energy efficiency. With an each additional pane of insulating air space and an extra pane of glass, triple-pane windows provide better insulation against heat transfer, resulting in lower energy bills and a more comfortable indoor environment.

The R-value, a measure of a material's resistance to heat flow, is a crucial factor in determining a window's insulation capabilities. Double-pane windows typically have an R-value ranging from R-3 to R-5, while triple-pane windows boast an R-value between R-6 and R-9, making them significantly more energy-efficient vs double-pane windows.

In colder climates, triple-pane windows excel at preventing heat loss, ensuring that your home stays warm and cozy without excessive energy consumption. Conversely, in warmer regions, these windows effectively block heat gain, reducing the need for air conditioning and maintaining a comfortable interior temperature.

Noise Reduction

Another notable advantage of triple-pane windows is their superior noise reduction capabilities. With an additional layer of glass and insulating air space, triple-pane windows can effectively dampen sound waves and reduce noise elsewhere, significantly reducing exterior noise pollution.

This feature is particularly beneficial for homes located in urban areas, near busy streets, or in proximity to airports and other sources of noise pollution. By minimizing noise transmission, triple-pane windows can create a more peaceful and serene living environment, enhancing your overall comfort and quality of life.

Double–pane and Triple pane Windows Cost

Window Type Size Double-Pane Windows Cost (CAD) Triple-Pane Windows Cost (CAD)
Double-Hung Small $300 - $500 $450 - $750
Medium $400 - $600 $600 - $900
Large $500 - $800 $750 - $1,200
Extra Large $700 - $1,000 $1,050 - $1,500
Casement Small $400 - $600 $600 - $900
Medium $500 - $700 $750 - $1,050
Large $600 - $900 $900 - $1,350
Extra Large $800 - $1,200 $1,200 - $1,800
Sliding Small $300 - $500 $450 - $750
Medium $400 - $600 $600 - $900
Large $500 - $800 $750 - $1,200
Extra Large $700 - $1,000 $1,050 - $1,500

Notes:

  • On average, triple-pane windows cost around 10-15% more than double-pane windows.
  • Triple-pane windows can range from $450 to $3,000 per window installed.
  • The total average cost for replacing the whole house with triple-pane windows (15-20 windows) is estimated to be between $6,750 to $60,000.

While triple-pane windows offer superior insulation and noise reduction, they generally come with a higher initial cost compared to double-pane windows. The additional materials and manufacturing processes involved in creating triple-pane window units contribute to this cost difference.

However, it's important to consider the long-term energy savings that triple-pane windows can provide. With their improved energy efficiency, these windows can significantly reduce your energy bills over time, potentially offsetting the higher upfront cost through lower utility expenses.

To determine the potential savings and return on investment of triple pane replacement windows, it's recommended to consult with a professional window installer or energy auditor. They can evaluate your specific climate, energy usage patterns, and other factors to provide an accurate estimate of the potential energy savings and payback period for triple-pane windows.


Cost of double-glazed windows

Installation and Maintenance

The installation process for double-pane and triple-pane windows is generally similar to dual-pane windows, requiring skilled professionals to ensure proper fitting and sealing. However, due to their heavier weight and additional components, triple pane windows may require more robust framing and support systems, potentially adding to the overall installation costs.

In terms of maintenance, both double-pane and triple-pane windows require regular cleaning and occasional inspection for any signs of seal failure or condensation between the panes. While triple-pane windows offer better insulation vs double-pane one, they may be slightly more susceptible to seal failures due to the additional air spaces and complexity.

Choosing the Right Window Type

When deciding between double-pane and triple-pane windows, it's essential to consider your specific needs, priorities, and budget. Here are some factors to consider:

  1. Climate: If you live in an area with extreme temperatures (either hot or cold), triple-pane windows may provide better insulation and energy savings, justifying the higher initial cost.
  2. Energy Costs: If you experience high energy bills due to excessive heating or cooling requirements, the improved energy efficiency of triple pane windows can help offset these costs over time. Read more about Energy Efficient Windows.
  3. Noise Levels: If you live in a noisy environment, such as near airports, busy streets, or construction sites, triple-pane windows can significantly reduce exterior noise pollution, improving your overall comfort and quality of life.
  4. Budget: While triple-pane windows offer superior performance, their higher upfront cost may not be feasible for all homeowners. In such cases, double-pane windows can still provide a significant improvement over single-pane windows while fitting within a more modest budget.
  5. Window Style and Design: Both double-pane and triple-pane windows are available in various styles, frame materials, and designs, allowing you to choose options that complement your home's aesthetic while meeting your functional requirements.

Ultimately, the decision between double-pane and triple-pane windows should be based on a careful evaluation of your specific needs, priorities, and long-term goals. Consulting with window professionals and energy auditors can provide valuable insights and help you make an informed choice that aligns with your desired comfort levels, energy savings, and overall cost-effectiveness.

Book a FREE Consultation

Conclusion

In the ongoing pursuit of energy efficiency and comfort, the choice between double-pane and triple-pane windows has become increasingly important for homeowners. While both double and triple-pane windows offer a significant improvement over traditional single-pane options, triple-pane windows take insulation and noise reduction to new heights, providing superior energy savings and a more comfortable living environment.

By understanding the key differences, advantages, and potential cost implications of each option, you can make an informed decision that aligns with your specific needs and budget. Whether you prioritize energy savings, noise reduction, or a combination of both, this comprehensive guide has equipped you with the knowledge necessary to choose the best window solution for your home.

Remember, investing in energy-efficient windows is not just a one-time expense – it's a long-term investment in your comfort, energy savings, and environmental responsibility. With the right window choice, you can enjoy a more comfortable living space, lower utility bills, and the satisfaction of contributing to a more sustainable future.
