What is a Window Well?

Key Takeaways

• Window wells are U-shaped structures that protect below-grade windows by holding back soil and allowing light and air.
• They improve drainage, reduce moisture risks, and are required by building codes for basement bedrooms (egress windows).
• Proper installation prevents leaks, mould, and foundation damage — common issues when drainage or sealing is skipped.
• When sealed and insulated correctly, they boost energy efficiency and reduce heat loss in winter.
• Accessories like covers, ladders, and decorative finishes enhance safety and curb appeal.
• Window wells aren’t just functional but a smart upgrade for comfort, code compliance, and resale value.

What exactly is a window well, and what purpose does it serve?

Imagine trying to add a window to your basement. You cut into the foundation wall and install the window, but what’s to stop water, debris, or even soil from piling against the glass? That’s where a window well steps in.

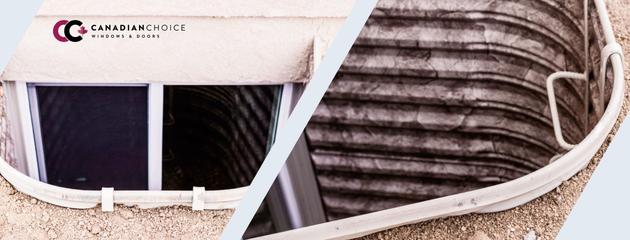

A window well is a U-shaped or circular structure made of galvanized steel, plastic, or masonry that sits outside a below-ground window. It acts like a retaining wall, holding back soil while leaving enough space to allow light and air in. Window wells are particularly common around basement windows, as these sit at or below ground level.

Purpose and Function

Tony Wong, Project Manager at Canadian Choice Windows & Doors , puts it succinctly:
"A properly installed window well does more than protect — it transforms your basement into a livable space by increasing light and airflow while safeguarding against moisture intrusion."

Let’s break down its core functions:

• Drainage Protection: The sloped bottom and built-in drainage system channel water away from the foundation.
• Light Access: Allows sunlight to penetrate what would otherwise be a dark, unusable room.
• Air Ventilation: When paired with operable windows, the well can also improve air quality.
• Safety and Egress: For bedrooms below grade, building codes require egress windows — window wells make this possible.

Neglecting to install a window well can lead to water seeping through the frame, contributing to mould growth and compromising the foundation.

Why are window wells important for basement windows?

To fully appreciate the role of window wells, you need to understand the multi-functional role they play in a basement’s safety and usability. Here’s how:

1. Access to Light

Basements are notorious for being dark. A window well helps redirect sunlight into subterranean rooms. Homeowners often report noticeable psychological and aesthetic benefits from this extra-natural light.

2. Improved Ventilation

Proper airflow in basements is challenging. Paired with an operable window, a window well can promote natural air circulation, reducing humidity and musty odours. It’s a simple addition that supports long-term air quality.

3. Water Drainage and Foundation Protection

Without a window well, water collects against the window pane or frame during rain or snowmelt. Over time, this leads to leakage, rot, or even flooding.

Building codes now require window wells to include:

• A drainage system (gravel base and sometimes a vertical drain pipe).
• A minimum clearance from the window for safety and maintenance access.
• Window well covers to prevent debris accumulation.

4. Safety and Building Code Compliance

Basement bedrooms must include egress windows — emergency exits in case of fire or structural emergency. According to the National Building Code of Canada, such windows must:

• Open without special tools.
• Be unobstructed.
• Allow a clear opening of at least 0.35 m² (3.77 ft²).

Window wells provide the space needed for someone to exit. They often include built-in ladders or steps, especially in deeper wells.

Helen Sin, Consumer Success Manager , notes:
"Window wells are not just structural accessories—they’re a part of your home’s emergency preparedness and energy efficiency."

Are window wells truly necessary for every home?

The short answer? Not always, but they are essential in many circumstances.

Mandatory Situations

You must install window wells when:

• Windows are below ground level.
• The space behind the window is designated as a living area or bedroom.
• Building code requirements apply to your home’s location.
• Your home has poor soil drainage or heavy rain/snow accumulation.

Optional Situations

Window wells can be optional if:

• The basement is unfinished or used only for storage.
• Windows are at or above grade level.
• Your region has dry climate conditions and good natural drainage.

Factors That Affect Necessity

Here’s a table comparing when window wells are required vs optional:

What common mistakes should you avoid during window well installation?

Even with the right materials and intentions, a window well can fail if installation missteps occur. Here are critical errors homeowners and contractors should avoid:

1. Poor or Absent Drainage

The number one culprit behind leaking or flooded window wells is inadequate drainage.

• Failing to install gravel beneath the well or connect to a drainpipe can cause water buildup.
• Never place the well directly on compacted soil.

2. Incorrect Sizing

A window well that’s too shallow or narrow restricts egress and reduces airflow.

• Measure the window’s dimensions plus extra clearance (usually 6 inches on all sides).
• Ensure the well extends at least 8–12 inches below the bottom of the window.

3. Gaps and Poor Sealing

Improper sealing between the window well and foundation wall can allow:

• Water intrusion
• Soil shifting and collapse.
• Cold air drafts

Other Common Errors

• Skipping a cover leads to debris accumulation.
• Placing the window well on a slope without compensating for water runoff.
• Not anchoring the well securely into masonry or siding.

Can window wells leak? How do you prevent water issues?

Yes — leaks are one of the most common window well complaints. Let’s break down the causes and prevention strategies.

Causes of Window Well Leaks

• No drainage system: Rainwater accumulates and has nowhere to go.
• Clogged drain pipe: Tree roots, silt, or debris block the path.
• Improper slope: The ground around the window well doesn’t direct water away.
• Gaps in seal: Poor caulking allows infiltration at connection points.

Prevention Tips

• Install gravel and drain tile under every window well.
• Slope the surrounding soil away from the well at a minimum of 5% grade.
• Apply waterproof coatings to the foundation wall.
• Use proper caulk/sealant

Case Study: A homeowner in Ottawa retrofitted their window well with no drain. After two storms, their basement flooded. Upon professional repair, a vertical drainpipe and gravel were added. Since then — no issues.

What accessories and covers are available for window wells?

Window well accessories can enhance safety, security, and functionality. Here’s what’s commonly available in Canada:

Types of Covers

Ladders and Safety Add-ons

• Built-in emergency ladders for deeper wells (often code-required)
• Child-proof grates to prevent falls.
• Anti-rust coatings and UV protection for longevity

Adding these accessories can enhance the resale appeal and fulfill insurance or code requirements.

How do window wells affect your home's energy efficiency and insulation?

While window wells are often installed for light and safety, they also influence thermal performance. When poorly installed or maintained, they can become points of heat loss.

Cold Air Infiltration

Improperly sealed window wells can allow cold air to seep through the frame. In winter, this results in:

• Higher heating costs
• Condensation on window panes
• Drafts near the basement windows

A study by Natural Resources Canada on home heat loss (2021) found that basement windows and improperly insulated areas accounted for up to 25% of total energy loss in older homes.

Thermal Breaks and Insulation

Modern window wells often integrate materials that help establish thermal breaks—barriers that reduce conductive heat flow.

Recommendations:

• Use insulated window frames with Low-E glass.
• Ensure proper foam sealing around the window frame and wall opening.
• Choose window wells with covers that provide an air barrier against cold winds.

Energy Efficiency Upgrades

• Use reflective, insulated well covers to trap heat.
• Check ENERGY STAR® guidelines for windows and accessories
• Schedule an energy audit to detect cold spots around basement openings.

How do window wells impact curb appeal and exterior design?

Window wells have evolved from utilitarian structures to aesthetic features that enhance a home's curb appeal. Homeowners now use them as design elements integrated into landscaping, siding, and architectural styling.

Aesthetic Upgrades

Modern wells come in:

• Stone-textured finishes
• Rust-resistant coloured steel
• Decorative plastic with UV coatings

Cover Styles That Enhance Appearance

• The clear dome covers are minimalist and barely visible.
• Tinted polycarbonate: Adds a sleek look while reducing glare
• Wrought-iron grates: Double as security features and design accents.

Landscaping Integration

Well’s designed landscaping includes:

• Flower beds around the well’s opening
• Stone or gravel borders for drainage and design unity
• Decorative retaining walls that incorporate the well’s shape

These upgrades improve visual flow, increase property value, and reduce water issues.

What are the key takeaways about window wells for homeowners?

Here’s a concise summary of everything covered in this comprehensive guide:

Summary Table

Expert Checklist

✅ Install proper drainage (gravel + pipe)
✅ Choose code-compliant window dimensions
✅ Seal with weatherproof caulk
✅ Add a cover to block debris/snow
✅ Connect to the existing weeping tile system
✅ Verify insulation/seal around window frame
✅ Check egress ladder requirements if applicable

Homeowners investing in window wells aren’t just complying with the law — they're enhancing their comfort, safety, and property value.
